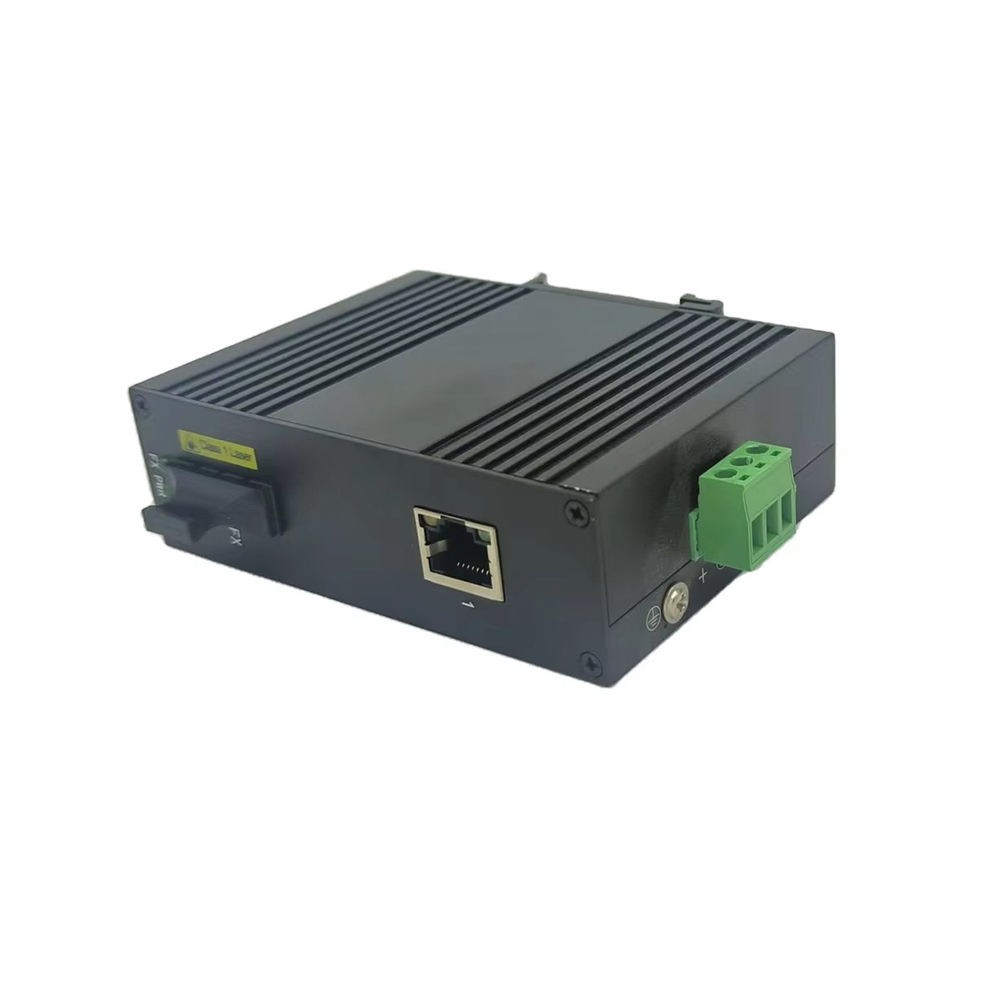

DIN rail 1000M Industrial Media Converter 20km

Product Name

Giga Industrial Media Converter

Communication Standards

IEEE802.3,IEEE802.3u, IEEE802.3x full duplex flow control,

Switching Properties

Duplex Mode: Supports full-duplex and half-duplex operation modes.
Flow Control: Supports IEEE 802.3X full-duplex flow control and half-duplex backpressure flow control.

Service Ports

Copper port: 1*10/100/1000Base-T auto negotiation RJ45 port,  transmission distance≤100m

Fiber port: 1*1000Base-X 1x9 optical module with dual SC connectors,

transmission distance: 20km

LED Indicator

6 LED indicators are present: PWR, TX 100, TX Link/Act, FX100, FX Link/Act,FDX/Col; for easier monitoring the working status of the media converter

Power Supply

DC12-52V

Enclosure

Aluminum shell

Product Size

104mm(L) x 78mm(W) x 32mm(H)

Weight

0.36kg/set

Installation Method

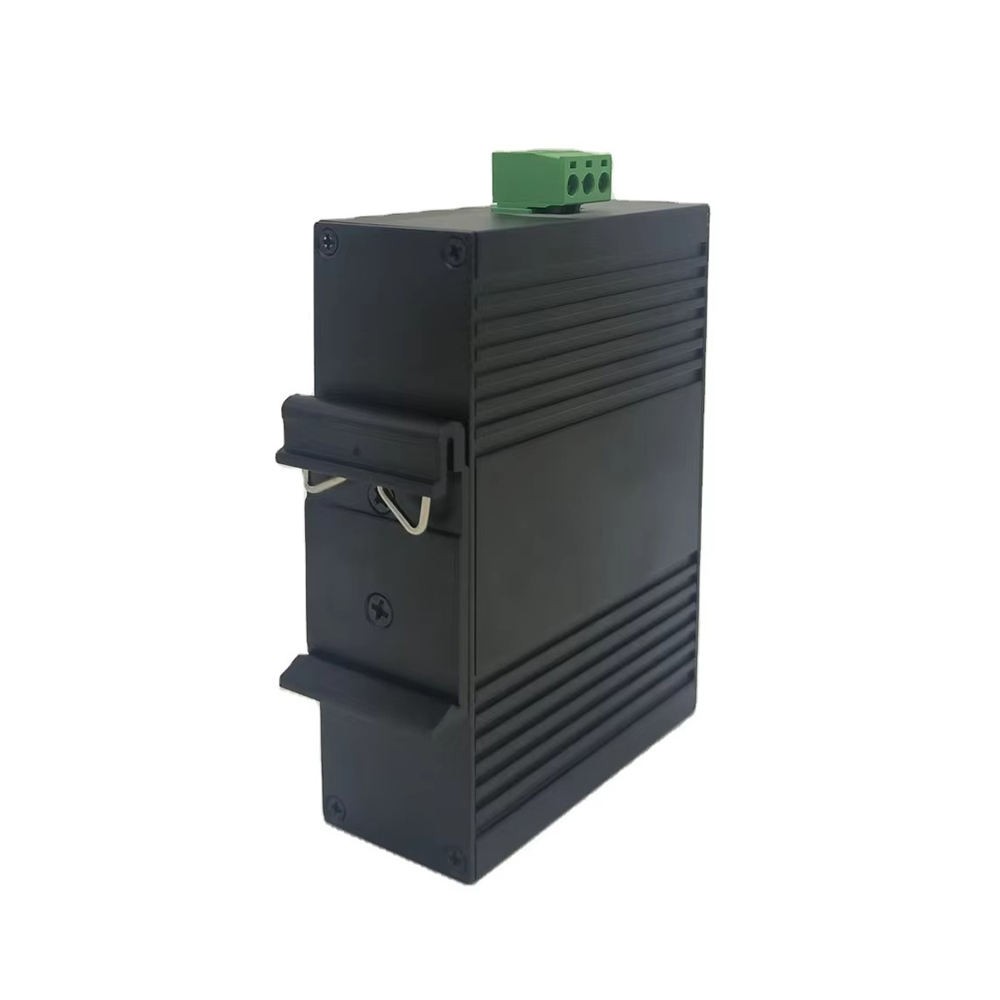

DIN rail

Operating Environment

Operating environment: -20~+75°C, 20%~90% (non-condensing)

Storage environment: -40~85°C, 10%~95% (non-condensing)
