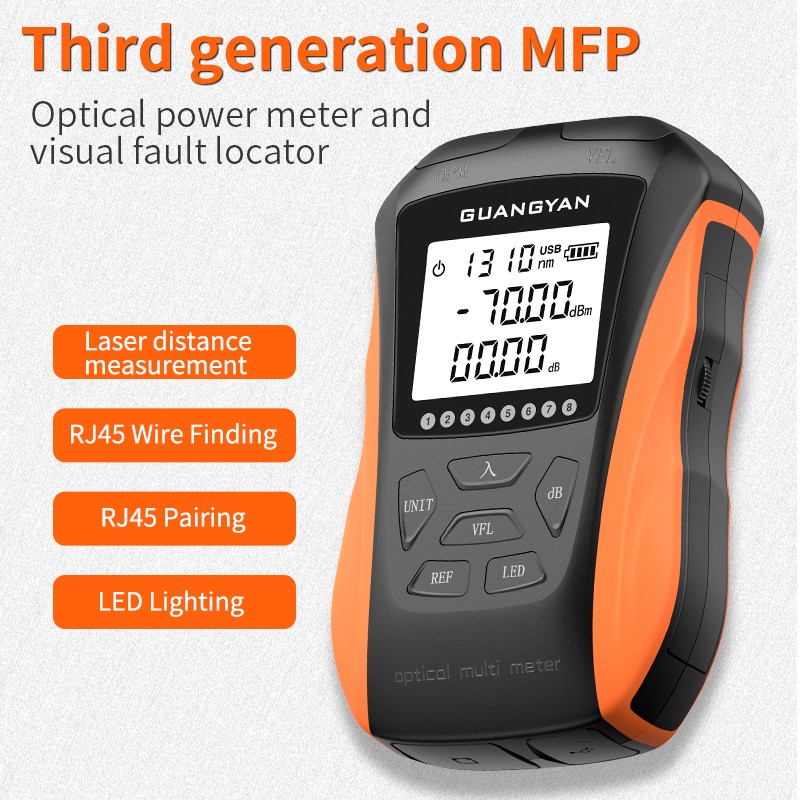

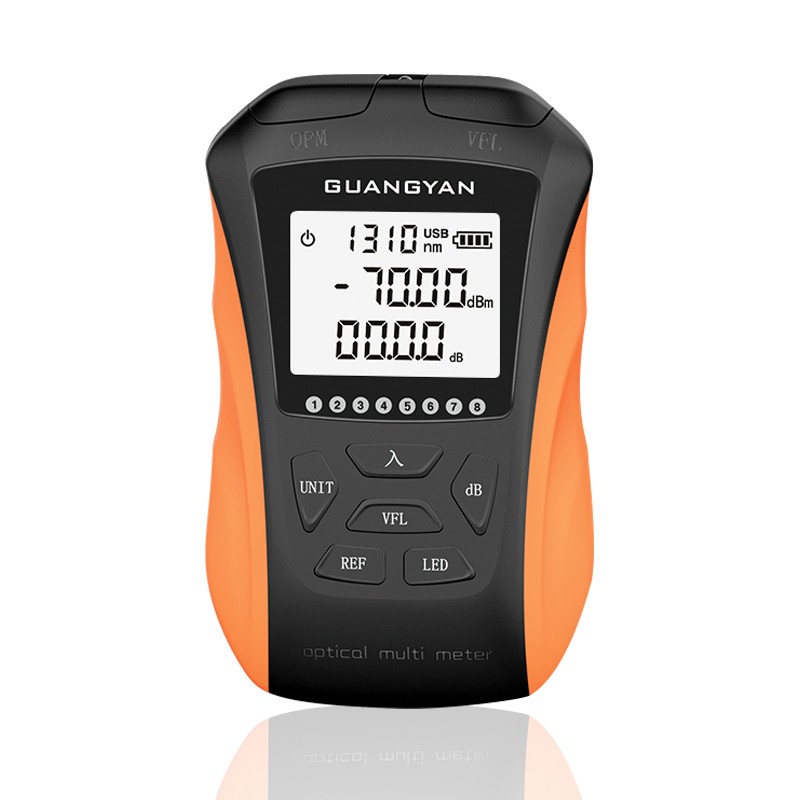

Multifunction Optical power meter Y8

Wave range 800nm~1700nm
Connector Universal FC/SC/ST
Power Range -70dBm~+6dBm /-50dBm~+26dBm
RJ45 cable seeking distance 200m

Product Description:

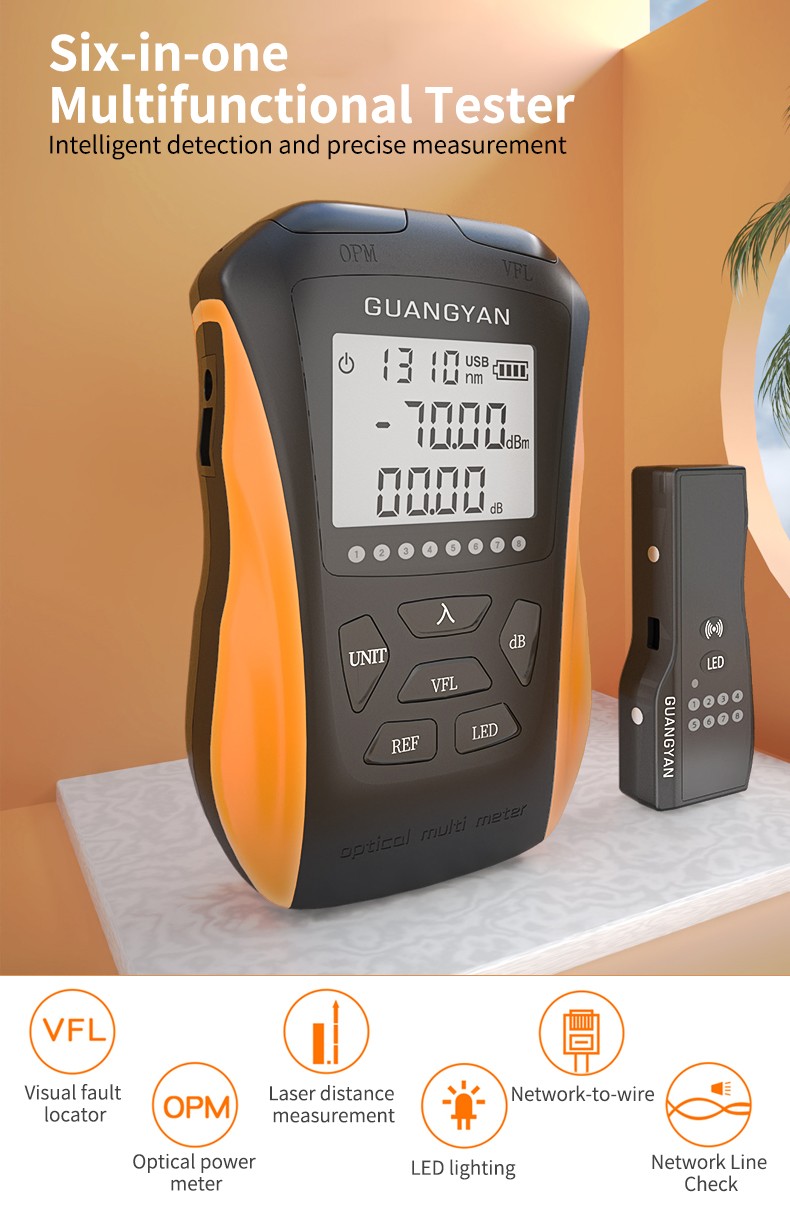

6 in 1 Multifunction Optical Power Meter Y8

Feature:

Six major functions in one

Making measurement easier

Red light source

Optical power meter

Network alignment

LED lighting

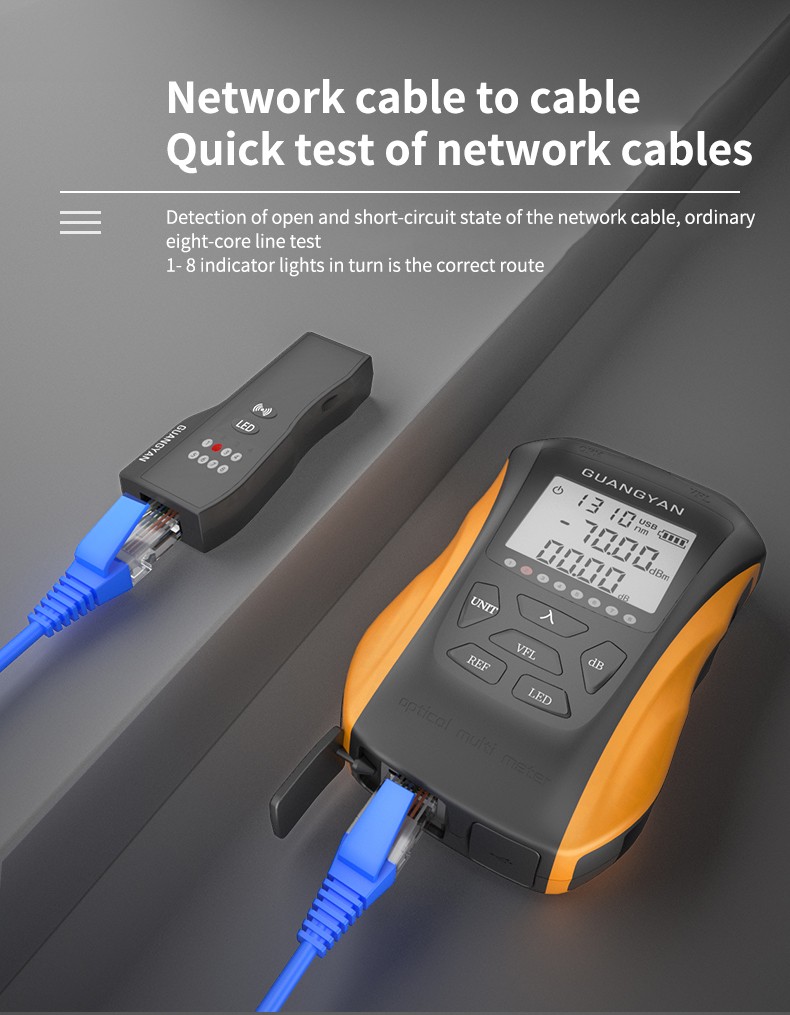

Network routing

Laser ranging

Specification

Wavelength range	800 to 1700
Measurement range	-70 to+6,-70 to+10,-50 to+26
Standard wavelength(nm)	850,980,1300,1310,1490,1550,1625
Display resolution	Linearity display:0.1%Logarithmic display:0.01dBm
Operating wavelength of red light	650nm
Uncertainty	±2%
Red light power	5,10(20,30 customizable)
Frequency identification	0,270,1000,2000Hz
RJ45 seeking distance	200m
Laser range distance	40m
Input Voltage	3~6V
Auto-off time	10 minutes
Battery Capacity	1100mAh rechargeable lithium battery
Continuous working time	Approx.72 hours(single power measurement)
Instrument size	1157130 mm
Package Size	1709547 mm
Net weight of the instrument	145g
