Fujikura 90S+ fusion splicer

core to core alignment
Ribbon splicing
Singlemode/multimode
Backbone splicing/FTTH splicing

Amazon To Buy

Product Description:

Fiber optic fusion splice machine FSM 90S 90s+

Descriptions

Fujikura 88S+/90s+ is a fully robust, core alignment fusion splicer, providing consistent, low loss, splice performance. It is packed with a whole host of new and enhanced features specifically developed with the objective to enable the user to work faster with higher precision.

Japan Fusion Splicer 88s/90s UPGRADE TO 88S+/90s+

Specifications

Fiber alignment method	Active core alignment
Fiber count	Single fiber
Fiber type	Single mode, Multi mode
Cladding dia	80 to 150μm
Splice loss	G.652: 0.02dB, G.651: 0.01dB, G.653: 0.04dB, G.655: 0.04dB, G.657: 0.0
Splice time	SM FAST mode: 7 to 9sec. AUTO mode: 14 to 16sec.
Heat time	60mm slim mode : 9 to 10sec. 60mm mode : 13 to 15sec.
Protection sleeve	Length: 66mm; dia.: Max. 6.0mm before shrinking
Fiber tensile test force	Approx. 2.0N
Electrode life	5,000 splices

Features

Splicing time: 7-9 sec (SM FAST mode).

Heat time: 13-15 sec (for 60 mm sleeves).

Core alignment technology.

Advanced image processing technology.

Fiber discrimination function.

The faster automated features.

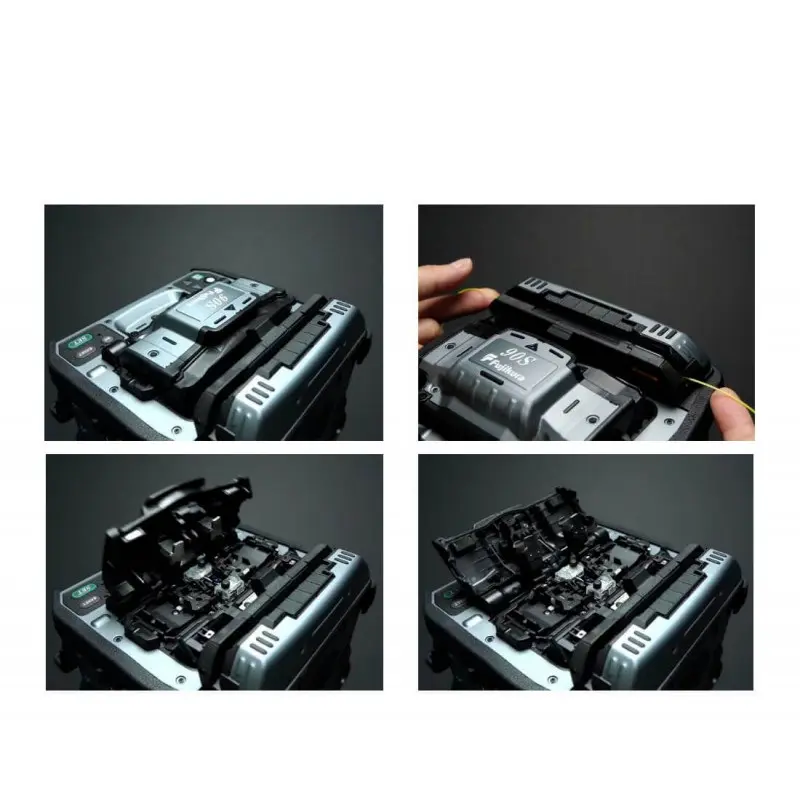

Time for opening wind protector is 80% lower comparing to the Fujikura 80S.

Time for placing fiber into heater is 50% lower comparing to the Fujikura 80S.

Easy fiber protection sleeve positioning.

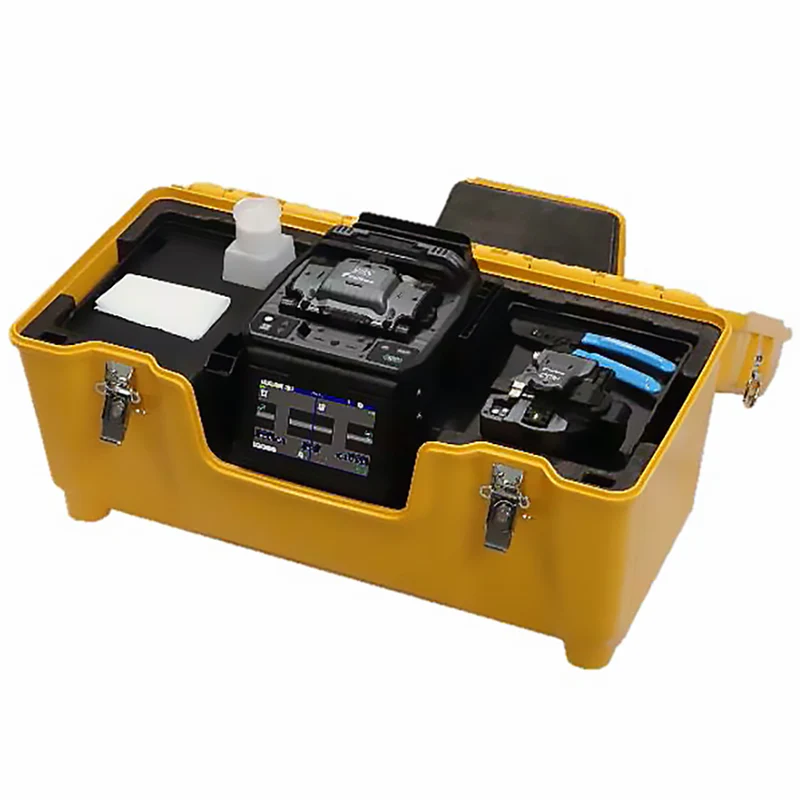

The lid of the carrying case may be used as a work table.

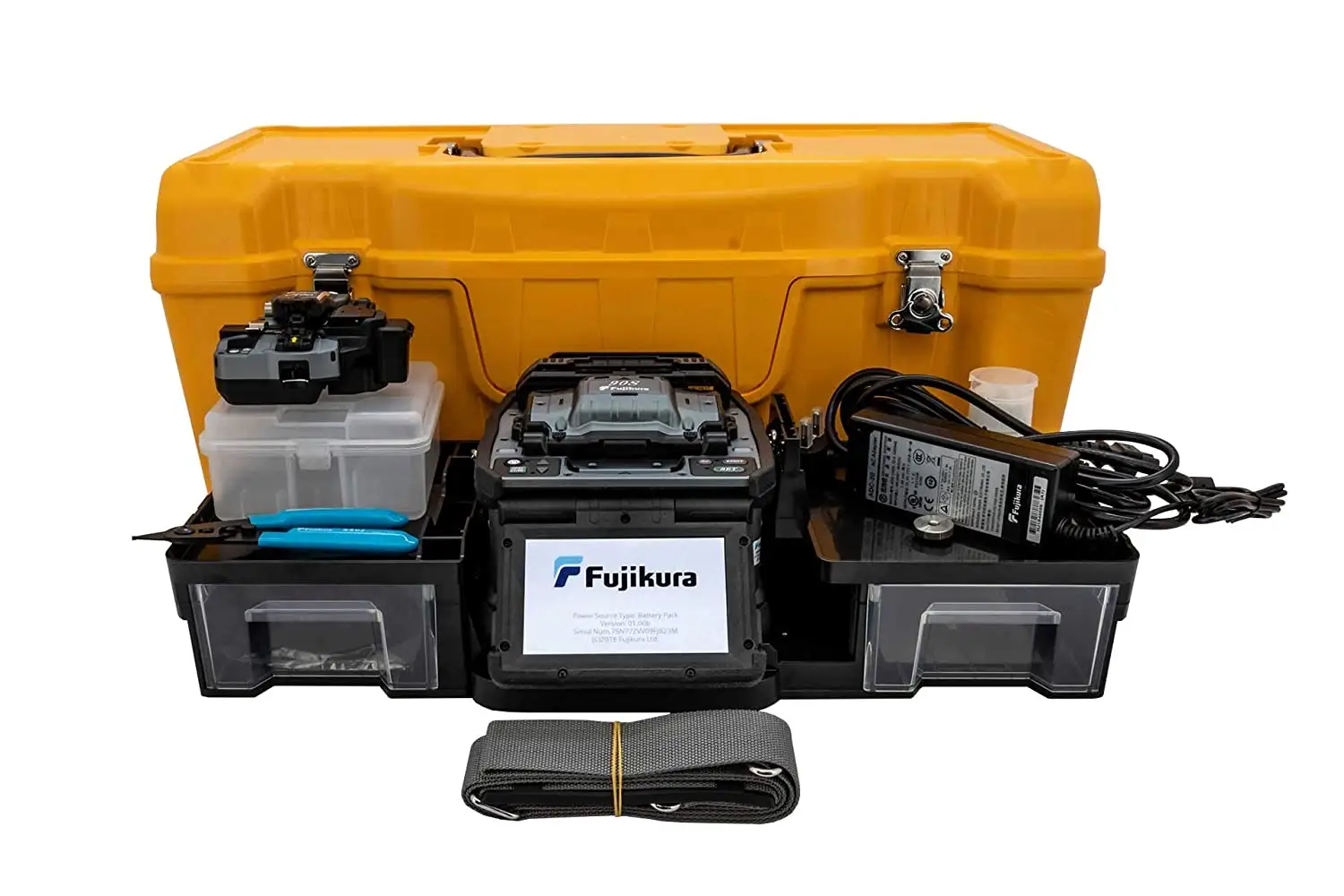

Plenty of space in the carrying case. There are two drawers for storage, and the work tray can be divided into two separate places.

The sheath clamp is compatible with loose tube fiber.

Wireless data connectivity allows automatic cleaver blade rotation when the splicer judges the blade is worn.

The tool can connect two cleavers simultaneously.

Blade life management: the device displays the remaining blade life, informs about blade height and position change, and when new blade is required.

Operation manual is installed into the splicer.

Battery life increased up to 500 recharge cycles.

Increased electrode lifetime – up to 5000 splicing cycles with one set.

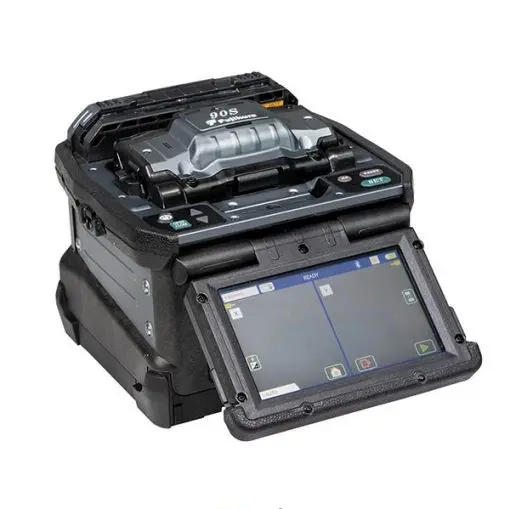

5-inch color TFT touch screen display

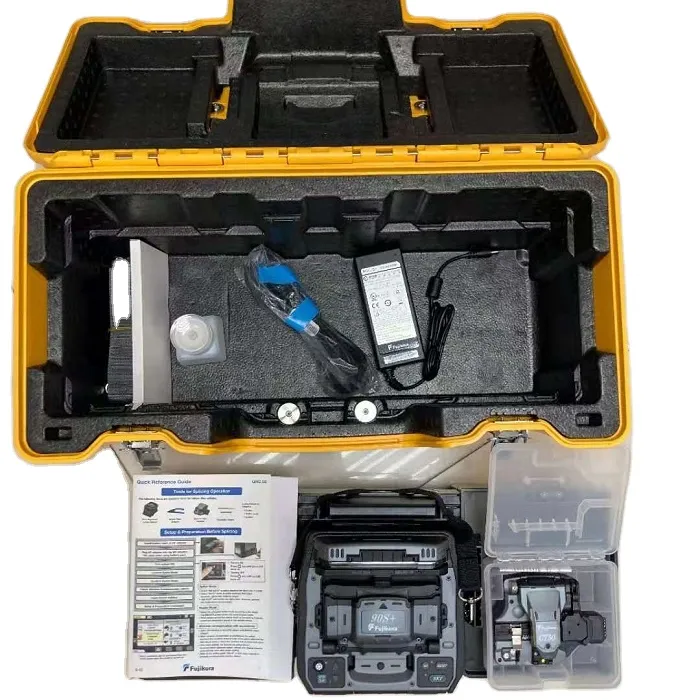

Standard Package:

Description		Model No.	Qty
Core Alignment Fusion Splicer		90S+	1pc
1	Battery Pack*	BTR-15	1pc
2	ACAdapter	ADC-20	1pc
3	AC Power Cord	ACC-14,15,16,17 or 18	1pc
4	USB Cable	USB-01	1pc
5	Fusion SplicerStrap	ST-02	1pc
6	Electrodes,forspare	ELCT2-16B	1pair
7	Fiber HolderSet Plate	SP-03	1pair
8	Carrying Case	CC-39	1pc
9	Work Tray Left	WT-09L	1pc
10	Work Tray Right	WT-09R	1pc
11	Work Tray J-Plate	JP-09	1pc
12	Tripod Screw	TS-03	2pcs
13	Carrying Case Strap	ST-03	1pc
14	AlcoholDispenser	AP-02	1pc
15	Quick Reference Guide	QRG-02-E	1pc
16	Instruction Manual	-	PDF file storedin Splicer
Single Fiber Stripper		SS03	1pc
Optical Fiber Cleaver		CT50	1pc
1	Fiber Scrap Collector	FDB-05	1pc
2	Fiber Setting Plate	AD-10-M24	1pc
3	Case,for cleaver	CC-37	1pc
4	HexagonalWrench	HEX-01	1pc
