Product Description:

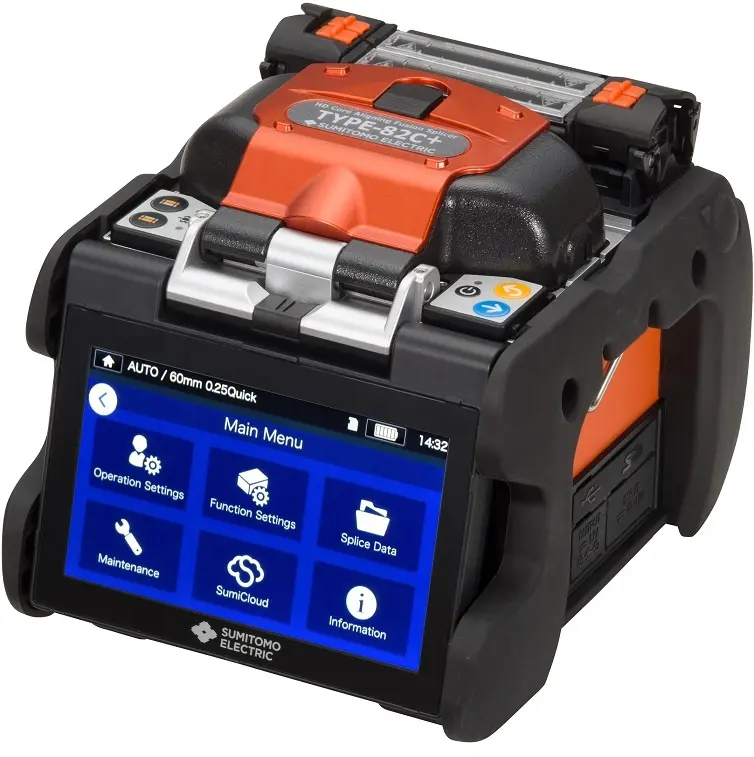

SUMITOMO TYPE 82C+ FUSION SPLICER

Descriptions:

The Sumitomo Type-82C+ is a high-performance fusion splicer known for its speed and advanced features. It boasts ultra-fast splicing (typically 5 seconds) and heating (typically 8 seconds). Key features include automatic fiber identification, automatic arc calibration, and compatibility with various fiber types. It also has a rugged design, is dust and water-resistant, and has a compact and lightweight body.

Features:

Ultra-fast splicing: 5 seconds for typical SMF fibers.
Ultra-fast heating: 8 seconds for typical 60mm sleeves.
Automatic fiber identification: Identifies SMF, MMF, DSF, NZDSF, BIF, and other fiber types.
Automatic arc calibration: Adjusts to environmental conditions.
G.657 fiber auto-splice function: Optimized for G.657 fibers.
Dual automatic independent ovens: For efficient heating of splice sleeves.
Rugged design: Dust, water, and shock resistant.
Compact and lightweight: Weighs only 1.9 kg without battery.
Touch screen operation: 5.0" WVGA LCD display.
SumiCloud™ support: Enables internet-based software upgrades, remote maintenance, and data management.
Onboard training videos: Provides user guidance.

Specifications:

Items Optical fiber requirements	Material Fiber count / Profile types Fiber diameter Cleave len th	TYPE-82C+ Silica glass Single / SMF(G.652), MMF(G.651), DSF(G.653), NZDSF(G.655), BIF(G.657), CSF(G.654), EDF Cladding diameter : 80 150um, Coating diameter : 100 1,000gm 5 - 16mm with coatin clam
Standard performance	Splice loss (typical) *l Return loss (typical) Splice time (typical) Heating time (typical) Splice & Heat cycles per battery full charge Fiber view & magnification Proof test Applicable protection sleeve	SMF : O.01dB, MMF : O.OldB, DSF : O.03dB, NZDSF : O.03dB 60dB or greater 5sec(SM G652 Quick Mode), 7sec(SM G652 Std. Mode), 7sec(Auto Mode) 8sec (FPS-61-2.6 sleeve, S60mm 0.25 Quick Mode ) Approx. 320 (BU-16) 2 CMOS cameras observation, 380X (zoom : 760X) for X or Y single axis view, 270X for both X & Y dual axis view 1.96 - 2.09N 60mm, 40mm & Sumitomo Nano sleeves
Programs	Splice programs Heatin ro rams	Max. 300, 74 are pre-optimsed, 226 editable by user Max. 100, 27 are re-o timsed, 73 editable b user
Functions	Splice image capture / Splice data storage Attenuation splicing Universal clamps Reversible coating clamps Dual automatic independent ovens User-selectable oven clamp operation Onboard user training video Automatic fiber identification Automatic arc calibration Display of remaining Splice & Heat cycles Wireless LAN connectivit O tion *3	200 images / 10,000 splice data (internal memory only) 50,200/20,000 (with 8GB SD card) 0.1dB to 15dB in 0.1dB increments Provided, 200gm, 9001-1m tight & loose buffer fiber Provided Provided Provided Provided SMF / MMF / DSF / NZDSF / BIF / Other Automatically compensates for environmental condition changes Provided (Battery mode) Provided
Size / Weight	Size	128(W) x 154(D) x 130(H) mm (without anti-shock rubber)
	Weight	1.9kg (without Battery) / 2.2kg (with Battery BU-16)
	Monitor	5.0" touch screen color LCD dis la
Terminals	DC output	DC 12V (for JR-6+)
	USB port	USB 2.0 (mini-B type)
	Stora e media	SD / SDHC memor card MAX32GB
Power supply	AC input	AC IOO - 240V, 50/60Hz (ADC-16)
	DC input	DC 10 - 15V
	Battery ack	Li-ion 10.8V, 6,400mAh (BU-16)
Operating condition	Altitude : O - 6,000m, Temperature : -10 - +50 0 C, Humidity : O - 95% (non-condensing),
Stora e condition	Wind velocit : u to 15m/sec	-40-20
Electrode life *4 Software dates	Tem erature : +80 0 C, Humidity O 95% (non-condensin ), Battery : +30 0 C (Ion term) 6,000 arc dischar es Internet
Data management	Can be stored, edited and analyzed by dedicated PC software
